Duplex proofStation

Specifications

The classic colour viewing combination that consists of a colour proofing light and a cabinet for storing prints and proofs will now be extended with a transmissive lighting unit. Thereby standardised D50 lighting is available from above and below. Perfectly suited for colour assessments of large-format, translucent prints like in the labeling and packaging industry.

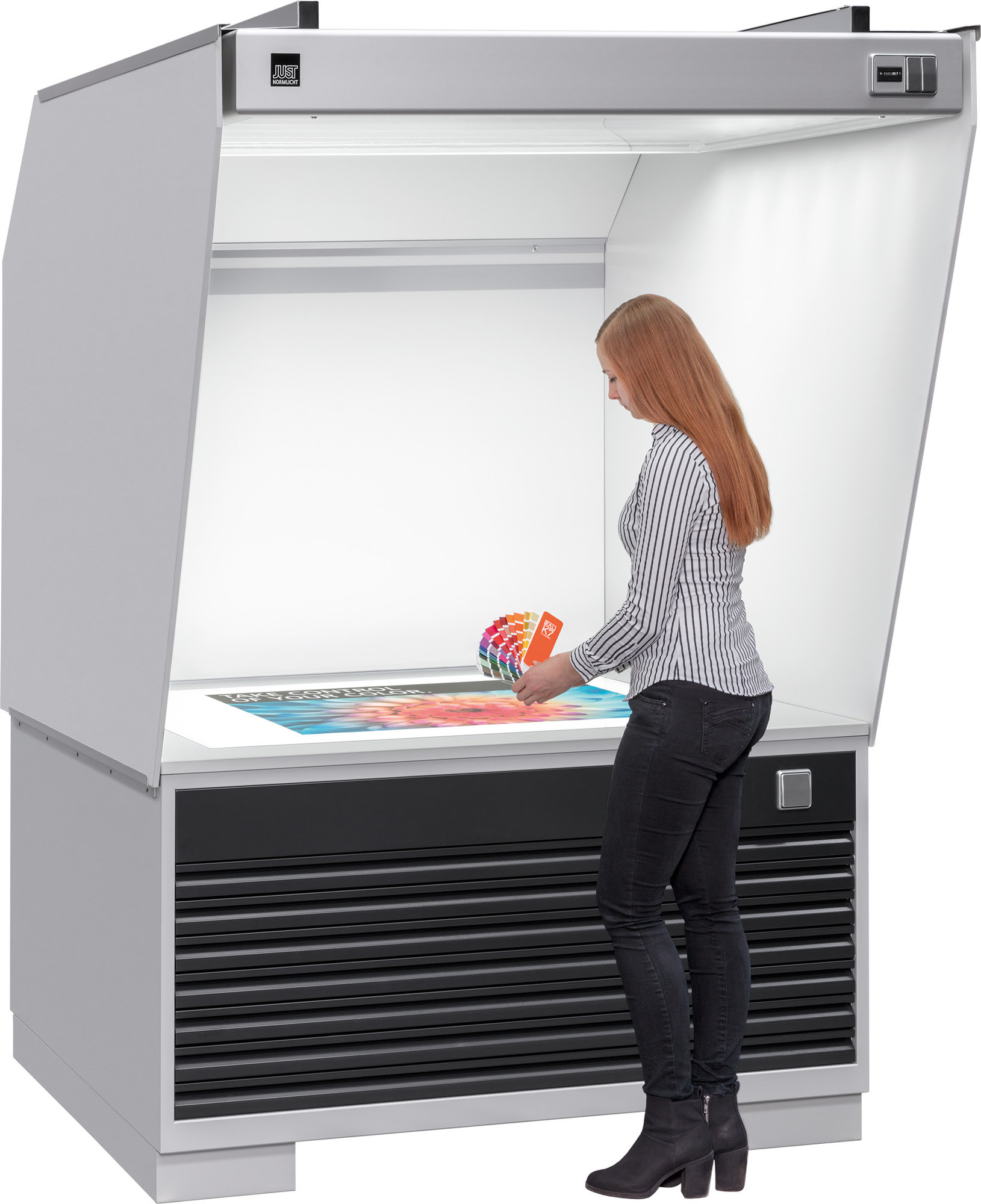

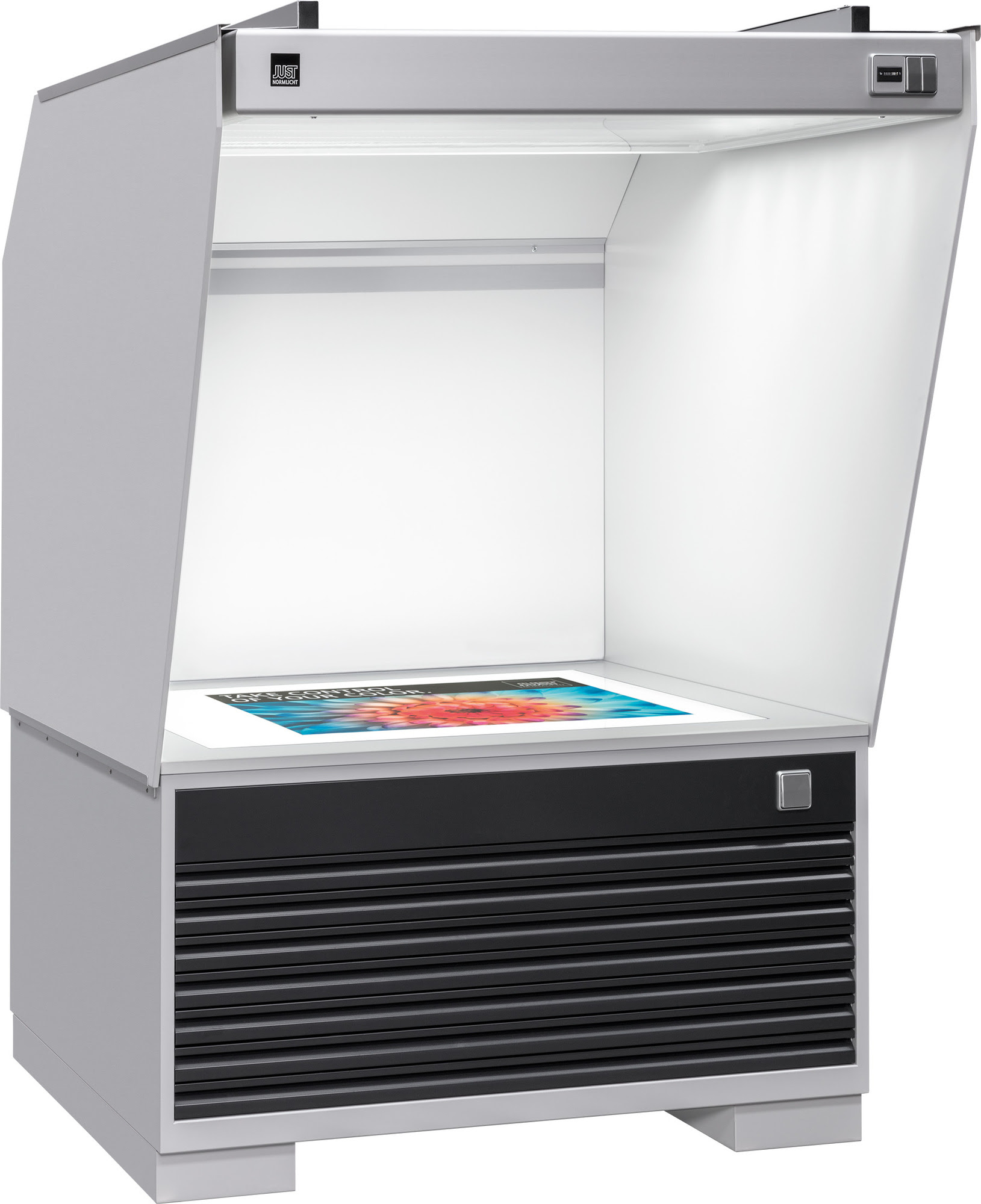

Ideal for colour assessments of translucent prints and labels
Integrated transparency light table with illumination area of 125 x 95 cm (49“ x 37 ½“)
Reflective and transmissive lighting can be used separately
Magnetic mounting rail for prints on the rear wall
Low-reflection illumination, thanks to asymmetrical light design
Convenient cabinet with seven drawers for organised storage of proofs and plots
Including JUST daylight 5000 proGraphic fluorescent lamps to ISO 3664:2009

Illuminant characteristics

Noon daylight (5000 K, D50 CIE)
Asymmetrical light design for viewing from one side (fixed viewing position)
Very little reflection and glare

Features

Digital operation hours meter for one illuminant
Viewing area is back-lit

Applications

For particularly large and flat viewing samples
For flat viewing samples, such as paper, fabrics, coatings

Types

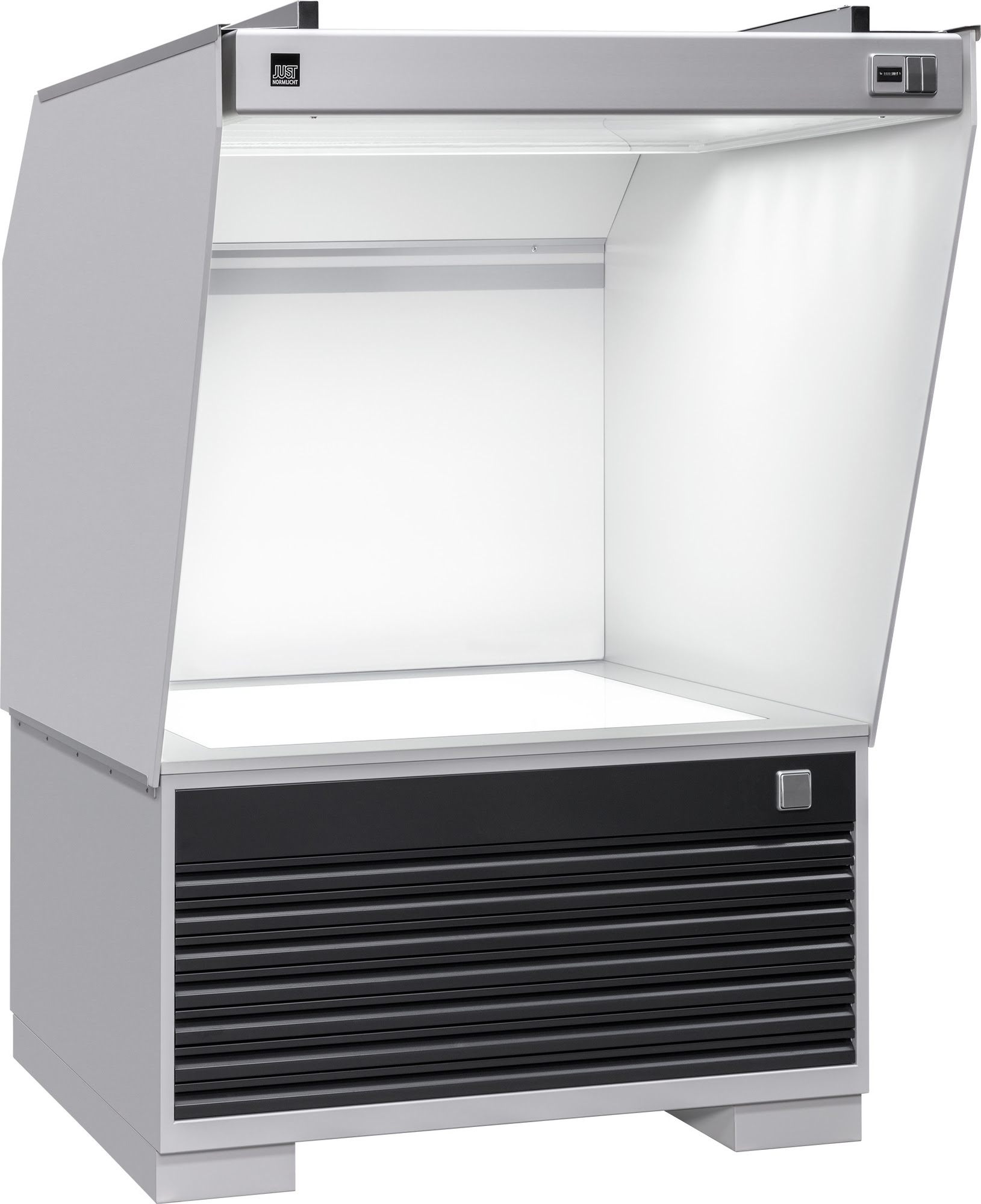

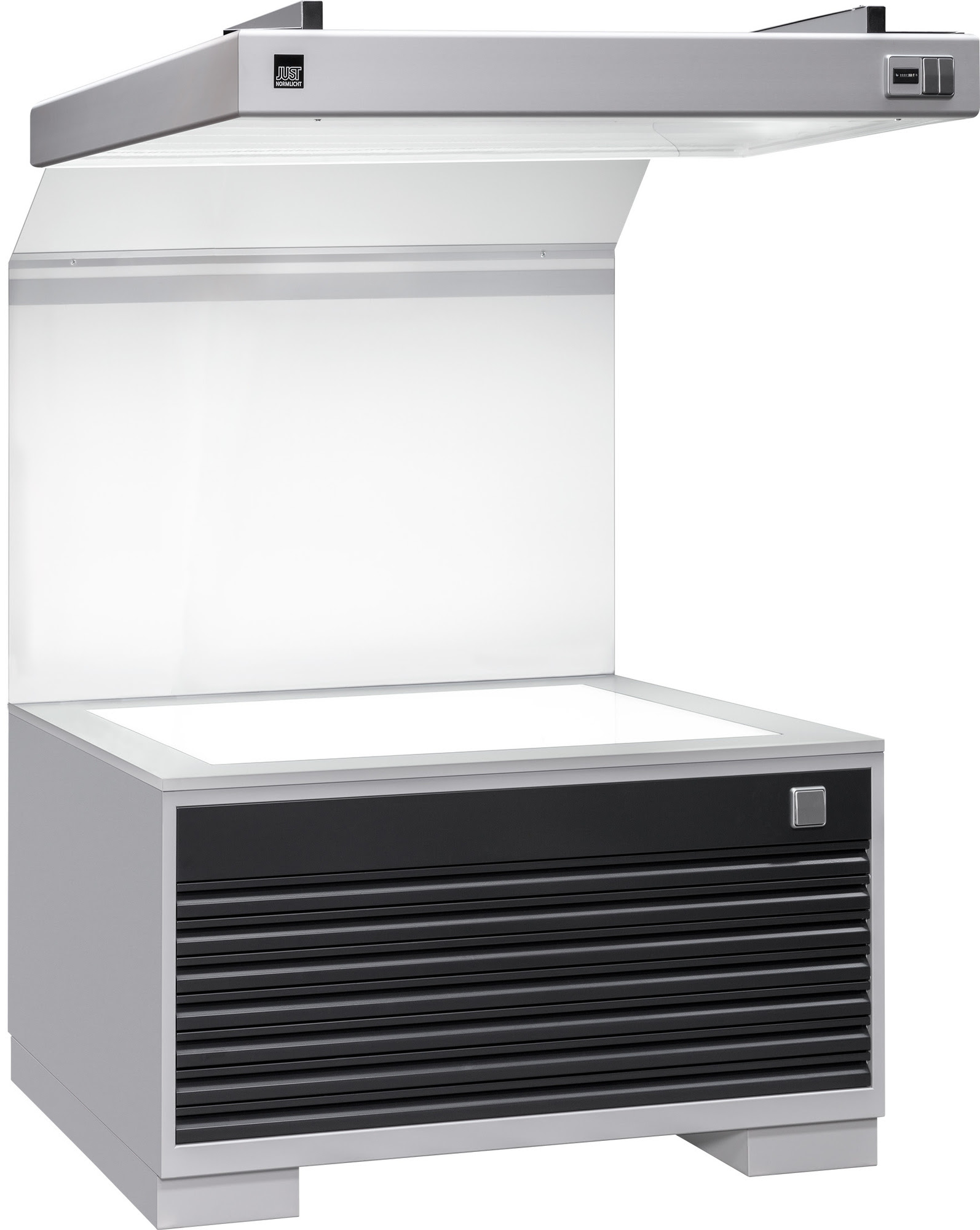

Duplex proofStation 6B

201668

Illumination area (W x D): 140 x 100 cm

Transmissive lighting area (W x D cm): 125 x 95
Usable area (W x D cm): 160 x 130
Outside dimensions (W x H x D cm): 160 x 230 x 176
7 drawers (W x H x D cm): each 149 x 3,5 x 117
Floor space required (W x D cm): 160 x 137

NOTE: UV-cut glass of transparency light table

Color proofStation 6B Side Walls on request

Price on request
