Color Control Center

Specifications

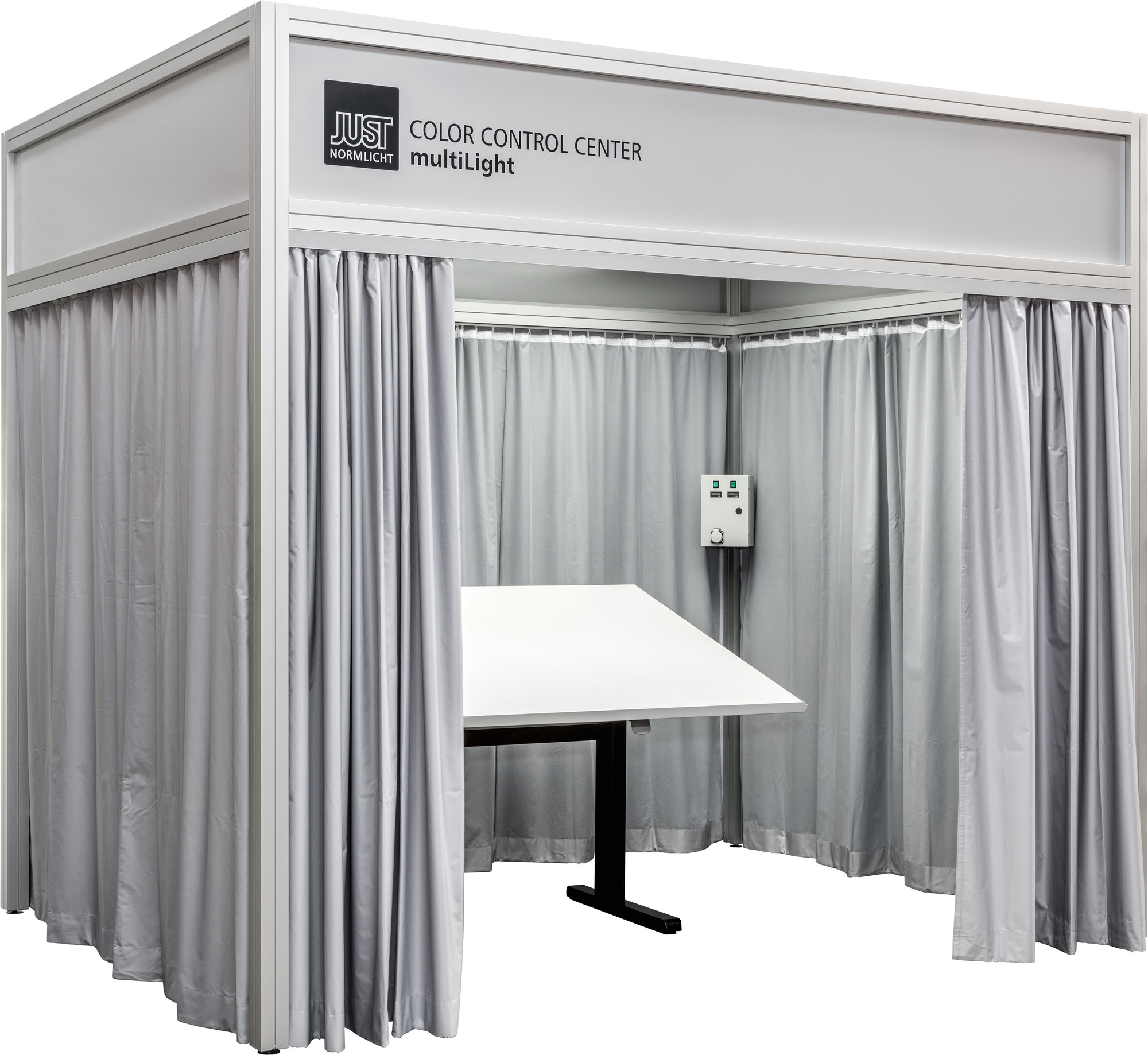

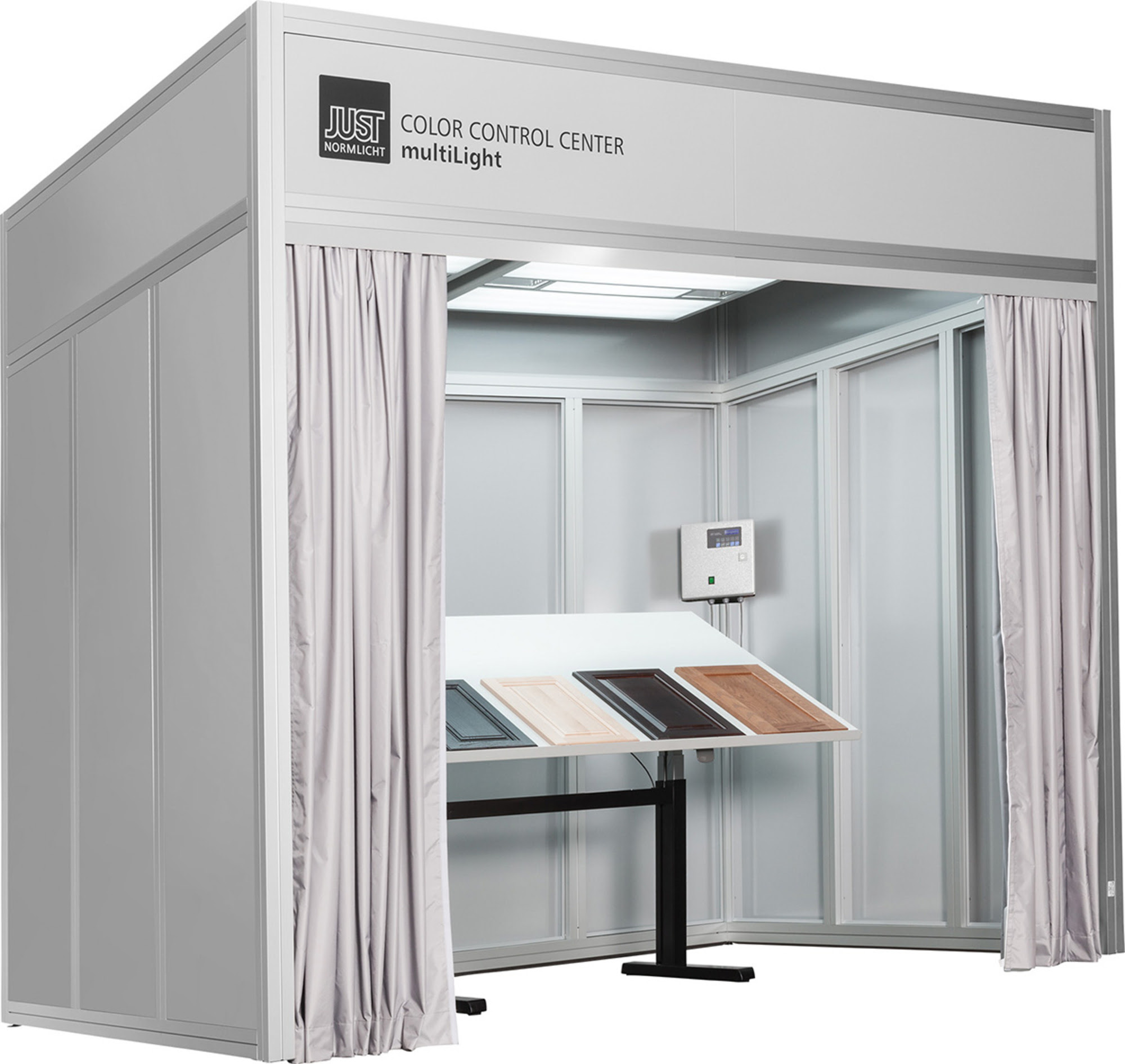

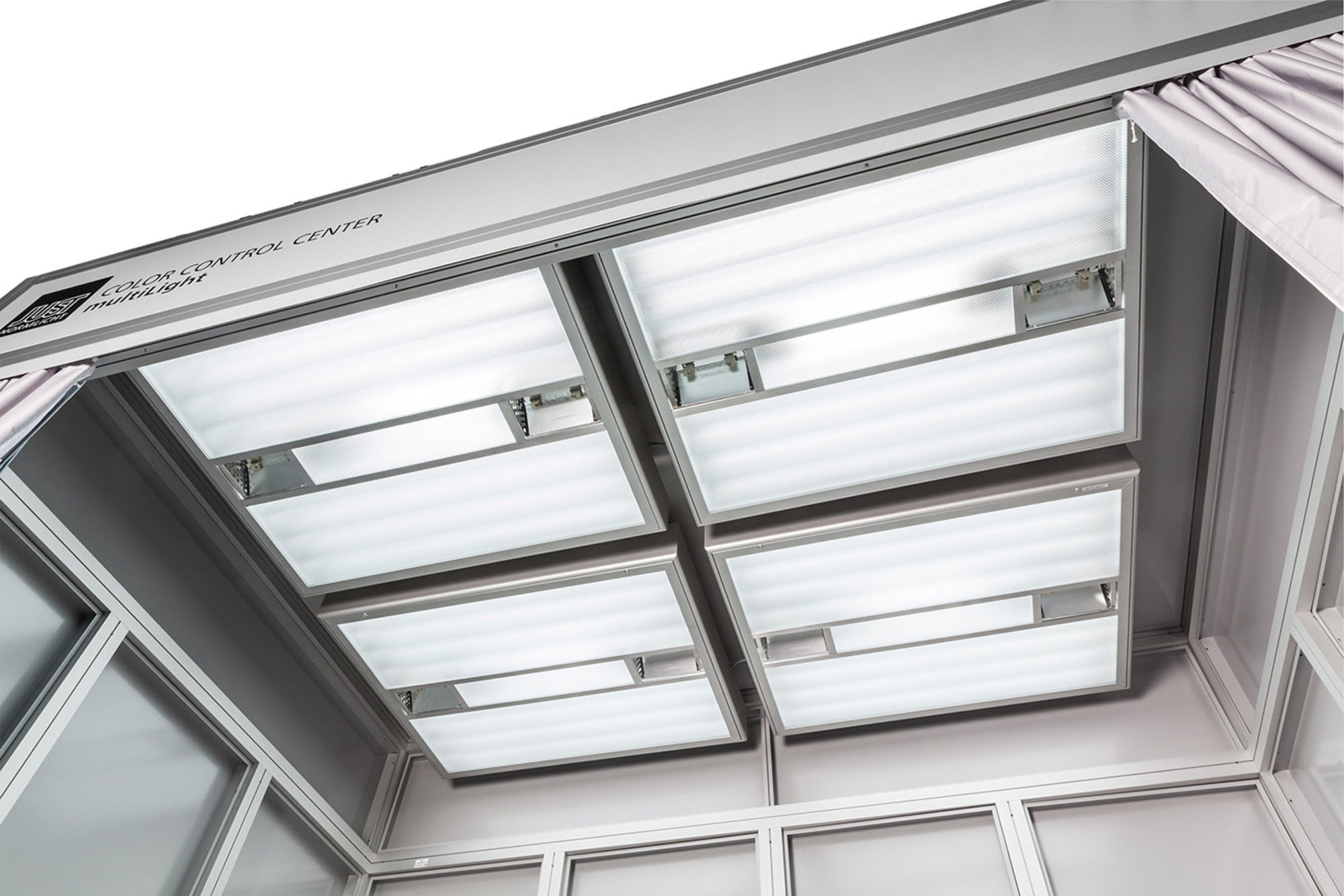

The accessible standardised viewing booth is equipped selectively with 2 or 3 illumants and provides controlled lighting conditions for large-format visual colour control of various materials. The system complies with all applicable industry standards such as ISO 3668, DIN 6173-2 and VDA 280 (8B/BC). With the dimmable multiLight lamp, an illuminance of 1000–4000 lux at a height of one meter above ground level compliant to standards can be achieved. Alternatively the Color Control Center can be equipped with either removable sliding doors, solid walls, or opaque curtains with a neutral gray finish.

  • Perfect for viewing plastics, paints, textiles, decors and coloured coatings of all kinds
  • optionally equipped with 2 or 3 illumiants. Free choice: D65, A, TL84, D50, UV
  • optionally equipped with convenient ECP with various features like dimming, Wi-Fi, programmable light sequences or with mechanical switches (fig.)

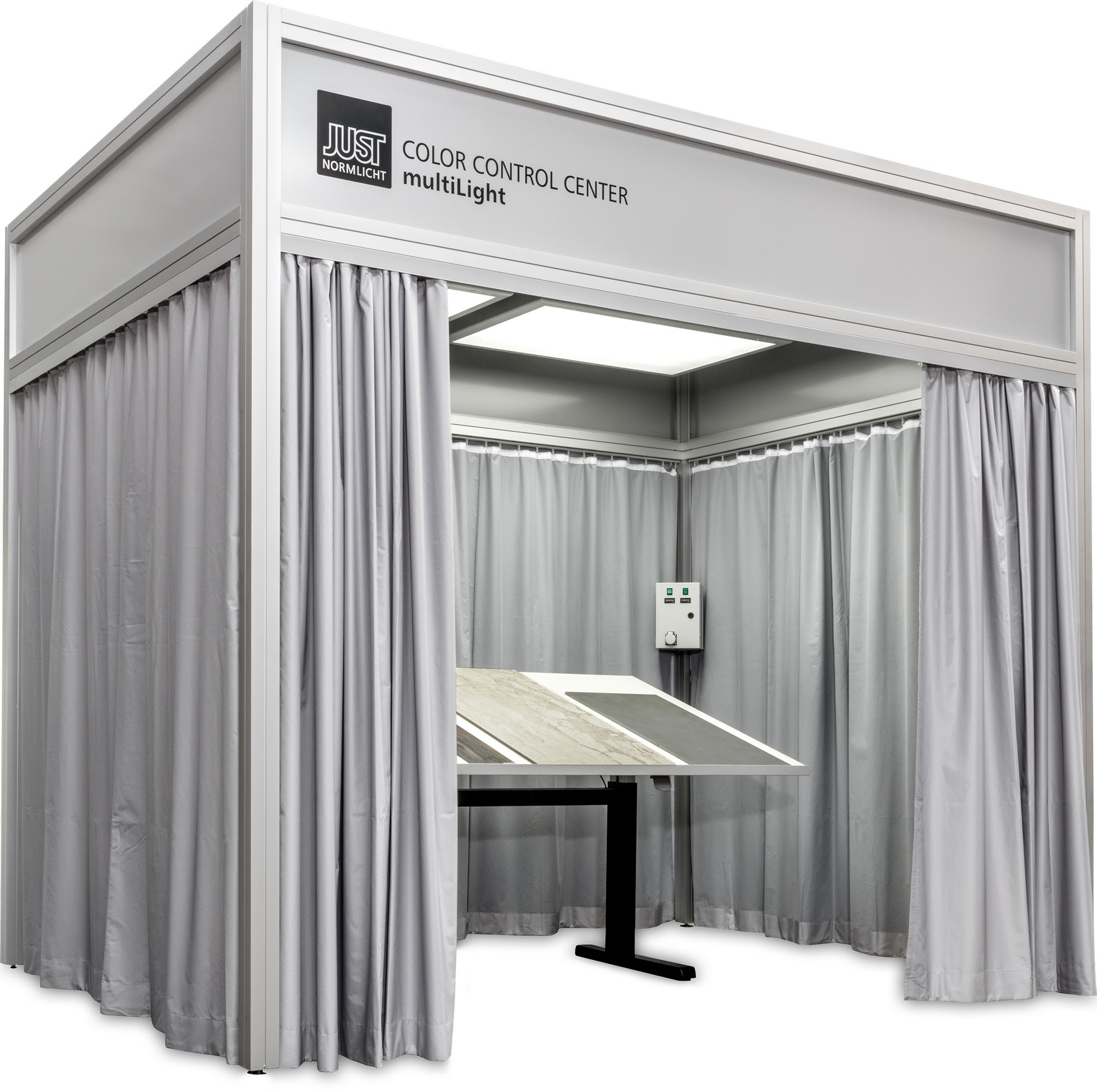

  • optionally equipped with motor-driven adjustable height (68–118 cm), pneumatic-spring-driven adjustable height (83–114 cm) or with pneumatic-spring-driven adjustable height and slanted surface (up to 85°)

    Illuminant characteristics

  • Noon daylight (5000 K, D50 CIE)

  • Average daylight from the northern sky (6500 K, D65 CIE)

  • Incandescent/domestic lighting (2700 K, A)

  • Store lighting (4100 K, TL84/CWF)

  • For detecting fluorescent substances (UV-A)

  • Very little reflection and glare

  • Symmetrical light design for viewing from several sides (viewing position can diversify)

    Features

  • Multiple illuminants can be selected simultaneously

    Applications

  • For particularly large and flat viewing samples

  • For 3D viewing samples made of different materials

  • Very good detection of metamerism thanks to numerous illuminants

Types

Color Control Center 2 BASIC

Color Control Center 2 BASIC

201322

Illumination area (W x D): 325 x 235 cm

Outside dimensions (W x H x D cm): 325 x 280 x 235

Free choice of 2 illuminants:
D65, D50, TL84, A, UV
Please tell us the illuminants when you place the order!

Price on request

Color Control Center 3 BASIC

Color Control Center 3 BASIC

201386

Illumination area (W x D): 325 x 235 cm

Outside dimensions (W x H x D cm): 325 x 280 x 235

Free choice of 3 illuminants:
D65, D50, TL84, A, UV
Please tell us the illuminants when you place the order!

Price on request

DLS Color Control Center v7

DLS Color Control Center v7

201835

Illumination area (W x D): 325 x 235 cm

Outside dimensions (W x H x D cm): 325 x 280 x 235

2 illuminants:
D65, D50

Price on request

DLS Color Control Center v8

DLS Color Control Center v8

201837

Illumination area (W x D): 325 x 235 cm

Outside dimensions (W x H x D cm): 325 x 280 x 235

Free choice of 3 illuminants:
D65, D50 + TL84 or A or UV
Please tell us the illuminants when you place the order!

Price on request

made in germany
