Color Viewing Light PRO

Specifications

Highly convenient operation and practical functions for reliable colour comparisons. The PRO matching booths leave nothing to be desired. For instance, dimming is just as possible as the generation of detailed reports on the viewing procedure. All parameters of the Color Viewing Light can be documented in a color matching report. You can use a laptop to conveniently create different light sequences, monitor the operation hours, or adapt the brightness.

Perfect for viewing plastics, paints, textiles, decors and coloured coatings of all kinds
Optimally suited to frequent colour comparisons
5 illuminants: D65, A, TL84, D50, UV-A
Compliant to ISO 3664, ISO 3668, DIN 6173-2, ASTM 1729 (others on request)
Convenient Electronic Control Panel for easy operation of the Color Viewing Light, directly on the unit or on a mobile device via the Internet browser
Adjustment of the brightness, thanks to dimmable lamps (except illuminant A)
Operation hours meter for all illuminants for timely relamping
Easy generation of detailed colour matching reports

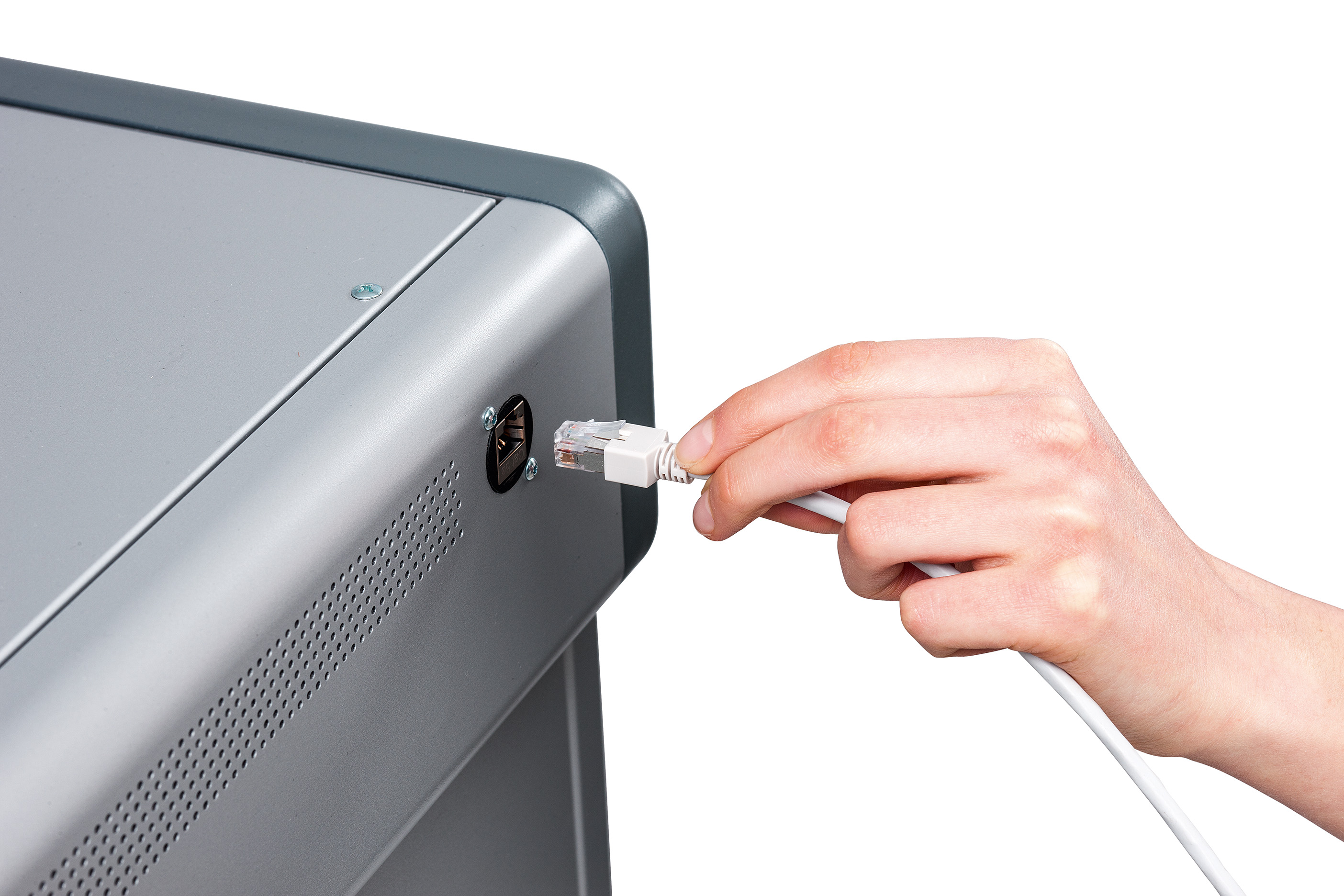

LAN connection for remote control of the viewing booth by smartphone, laptop or tablet using a remote app
Mixed-light function
10 light sequences can be stored
5 different sizes available for a wide variety of viewing samples
Interior designed in neutral, matte-gray Munsell N7 (G5574, Munsell N5 on request); matte-black interior lining as an option (accessory)

Illuminant characteristics

Noon daylight (5000 K, D50 CIE)
Average daylight from the northern sky (6500 K, D65 CIE)
Incandescent/domestic lighting (2700 K, A)
Store lighting (4100 K, TL84/CWF)
For detecting fluorescent substances (UV-A)

Features

Illuminants are dimmable
Digital operation hours meter for all illuminants
LAN interface for connection to network
Multiple illuminants can be selected simultaneously
Different illuminant sequences can be programmed
Report Generator for viewing procedure
Remote control of the device via laptop, tablet, smartphone

Applications

For flat viewing samples, such as paper, fabrics, coatings
For 3D viewing samples made of different materials
Very good detection of metamerism thanks to numerous illuminants
« general product features of all devices; special featuers of particular devices »

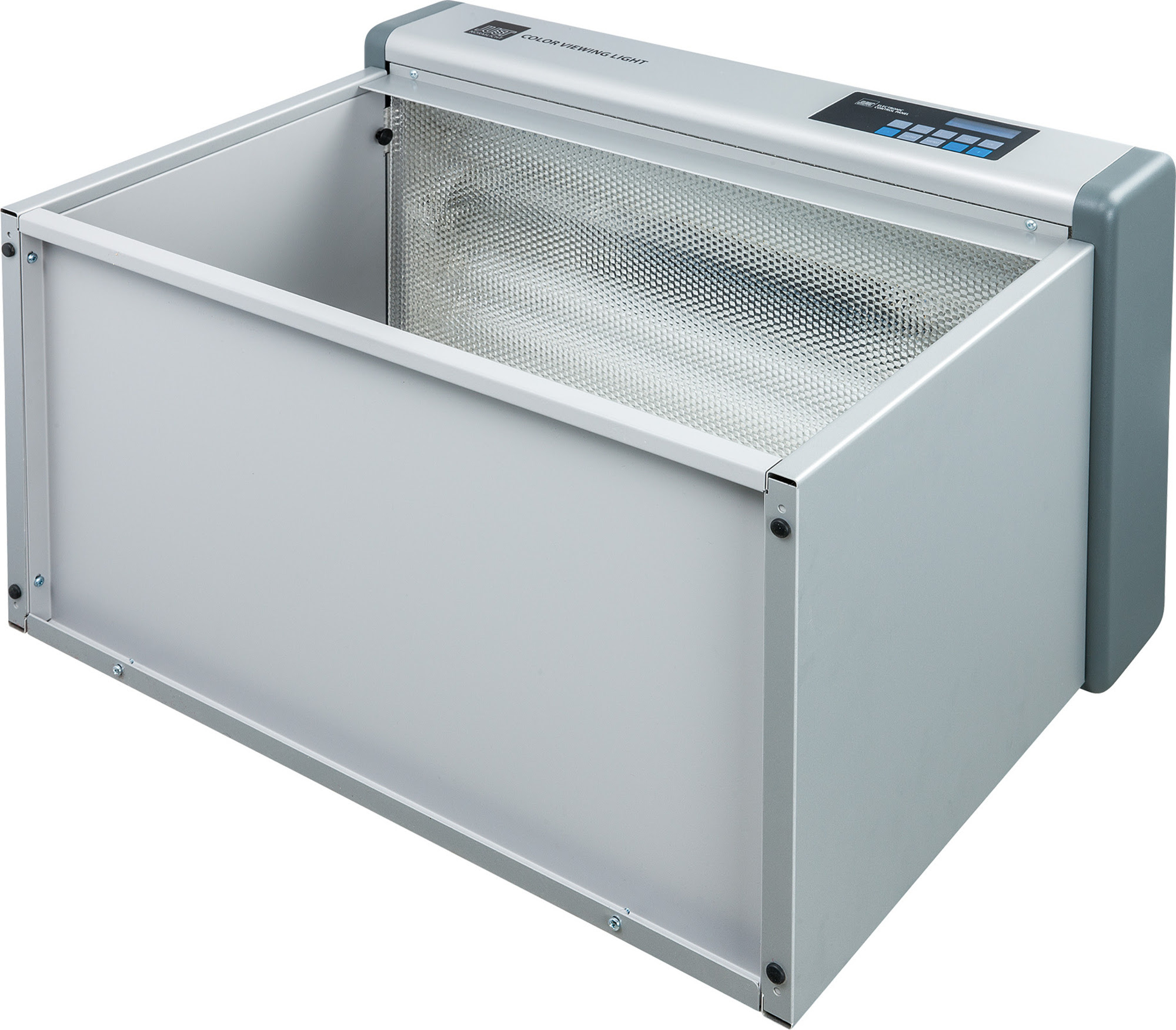

For particularly large and flat viewing samples

Downloads

Assembly and Operating Instructions (S, M, L, XL) Assembly and Operating Instructions (XXL) Sample test report Assembly and Operating Instructions (Italian) EC-Declaration Color Viewing Light
